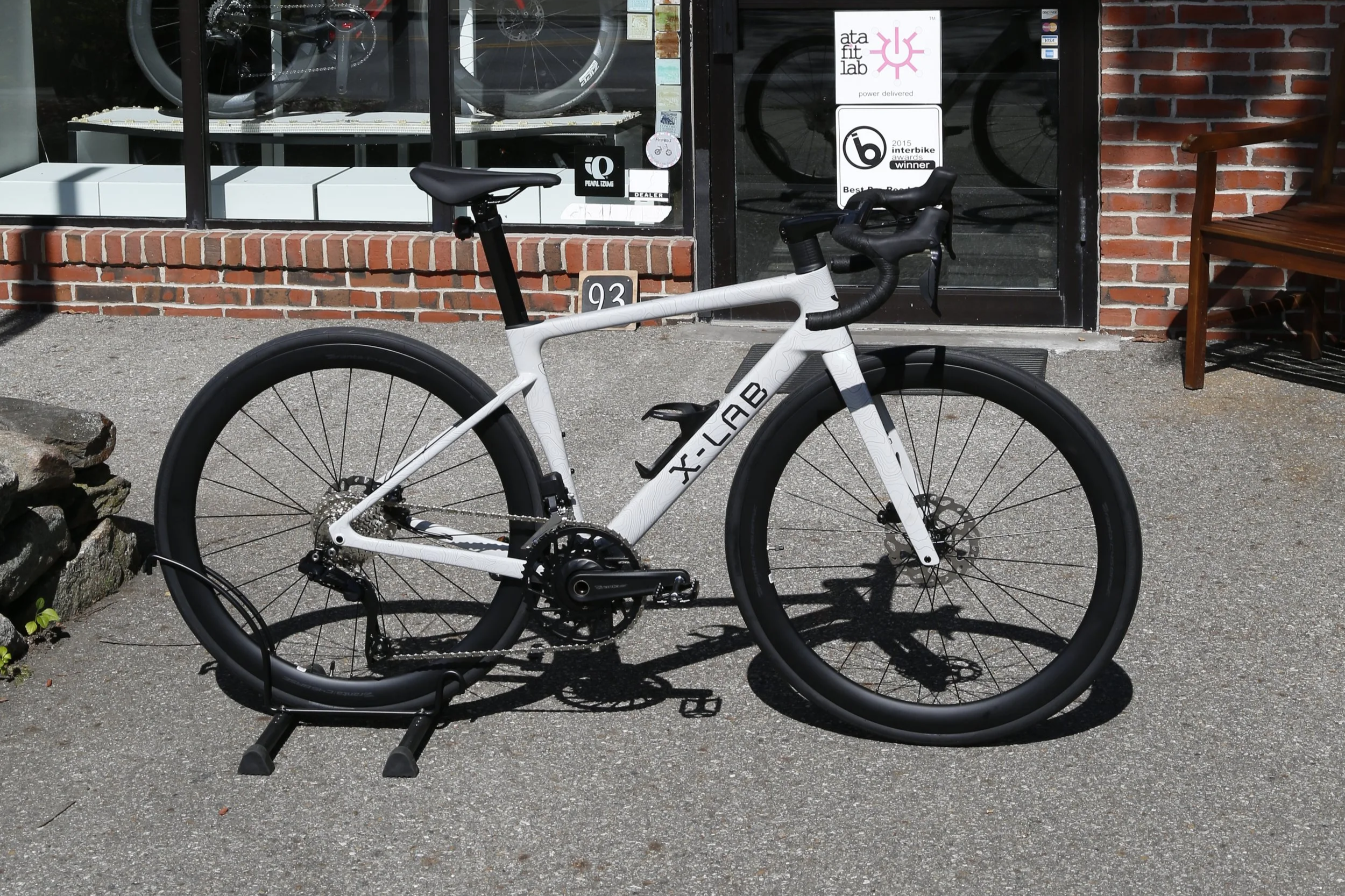

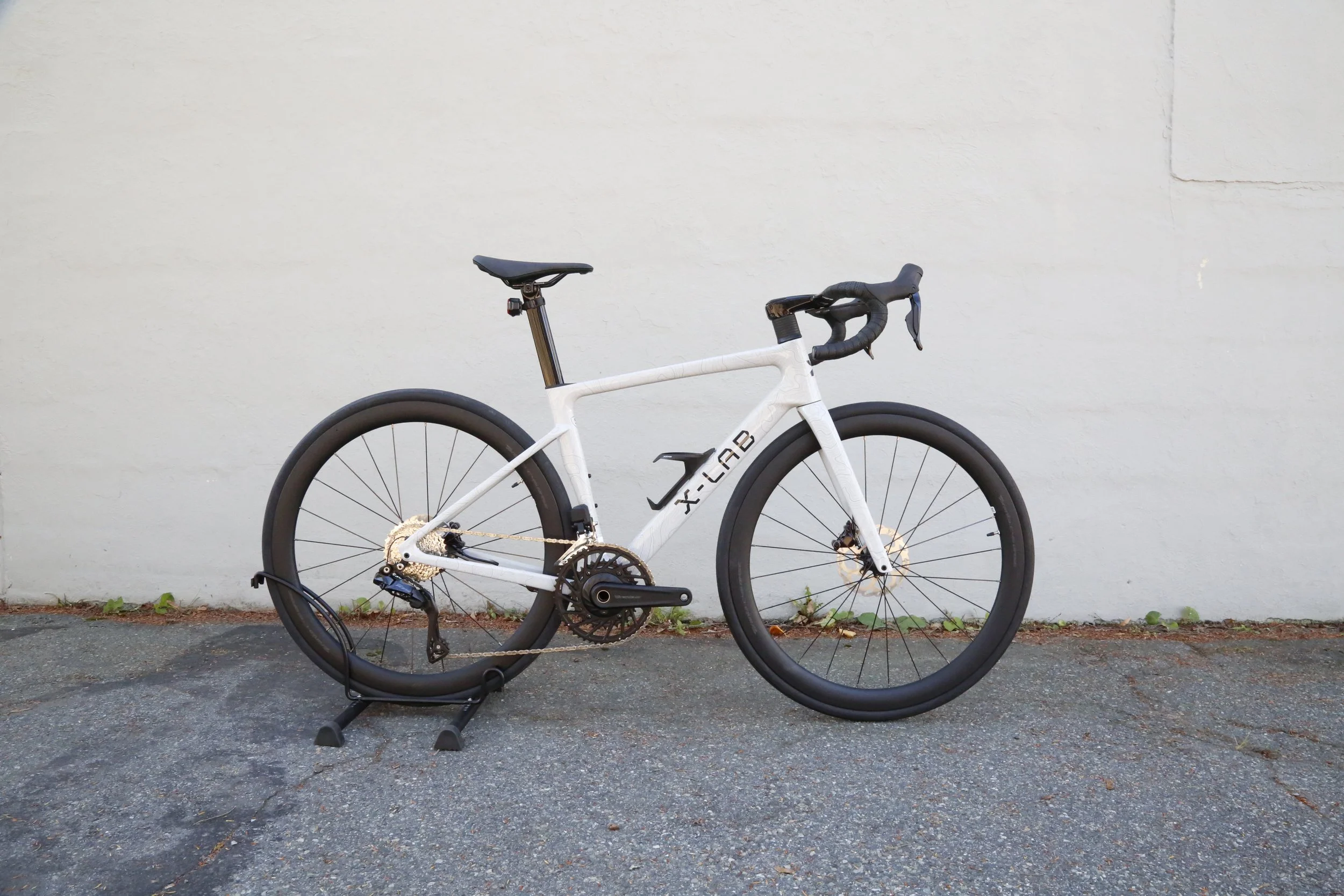

XLAB RS7 Di2
XLAB RS7 Di2
The best value entry-level bike on the market
Toray T800 carbon frame
Shimano 105 Di2 drivetrain
Branta alloy power meter crankset

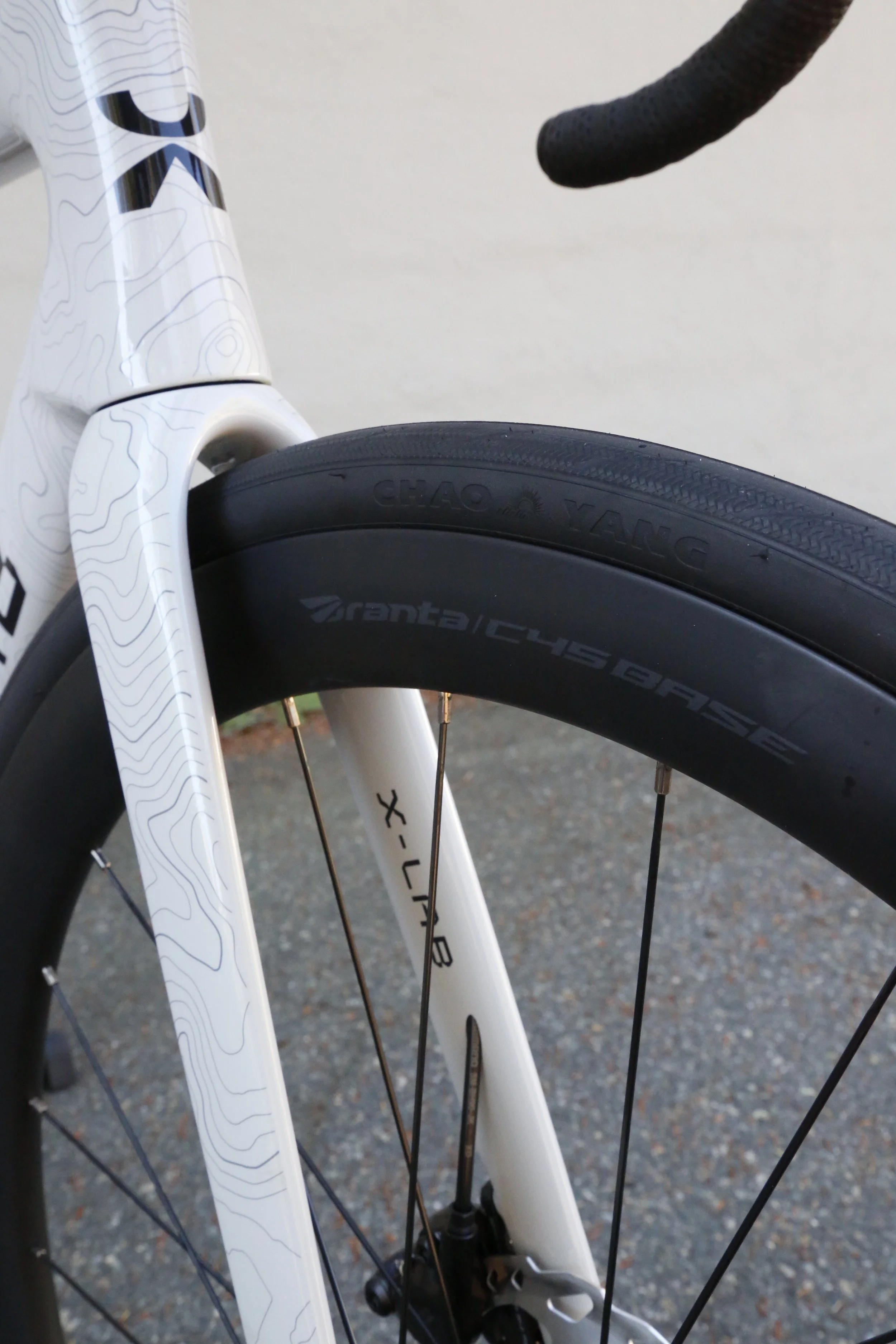

Branta C45 Base Carbon Wheels
Fits up to a 32mm tire
In store pick-up only
Additional $250.00 build fee applies at pick-up
-
Crank Length - (XS) 160mm, (S) 160mm, (M) 170mm, (L) 170mm, (XL) 172.5mm, (XXL), 172.5mm
Bar Width - (XS) 360mm, (S) 360mm, (M) 380mm, (L) 380mm, (XL) 400mm, (XXL), 400mm
Stem Length - (XS) 90mm, (S) 100mm, (M) 110mm, (L) 110mm, (XL) 120mm, (XXL), 120mm
Cassette Size - 11-34t
Chainring Size - 52-36t
Front Axle - 12x100
Rear Axle - 12×142
Tire Clearance - 32mm
Pedals - Not included

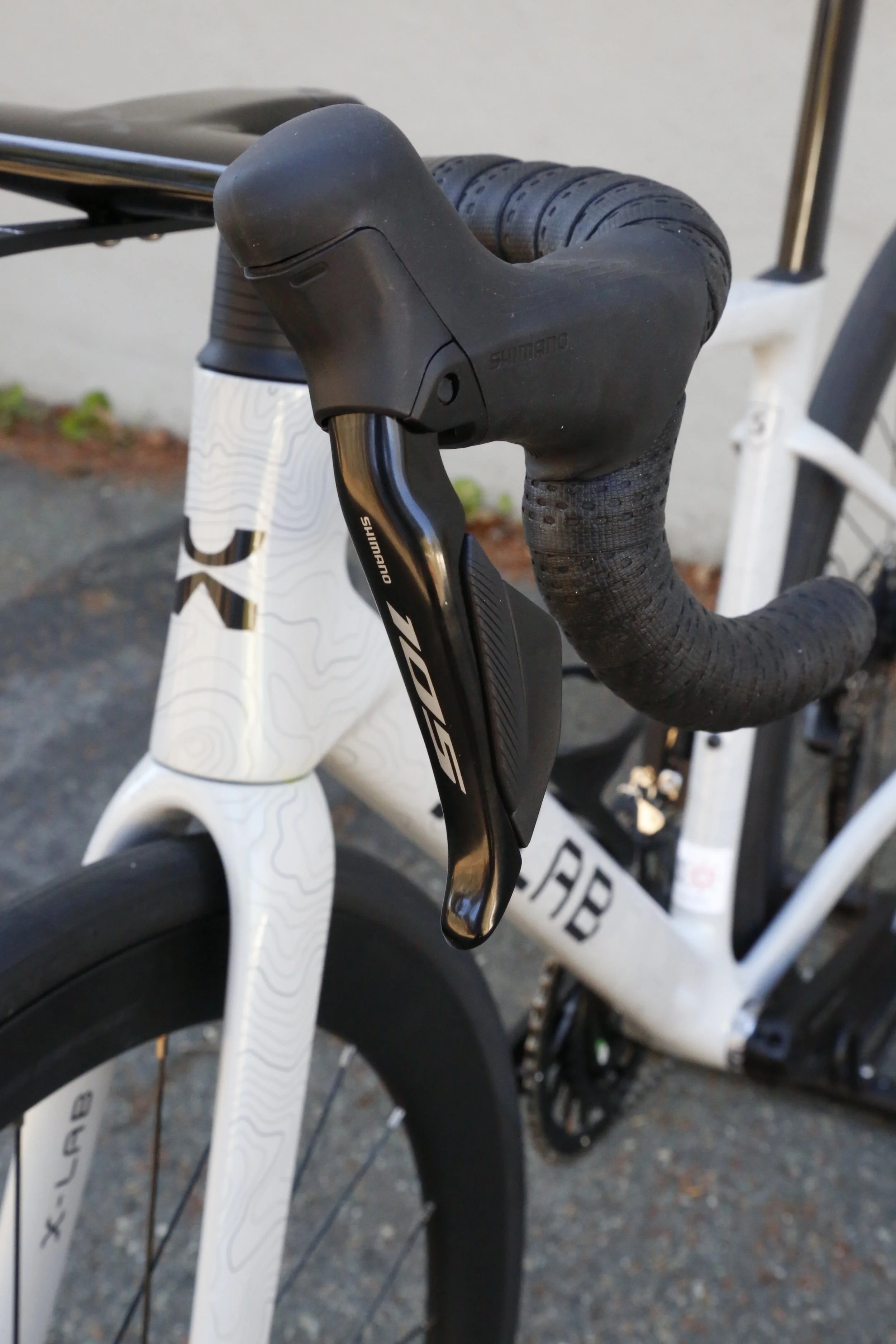

Shifters - Shimano 105 Di2 ST-R7170
Chain - Shimano CN-M7100
Cassette - Shimano 105 CS-R7101

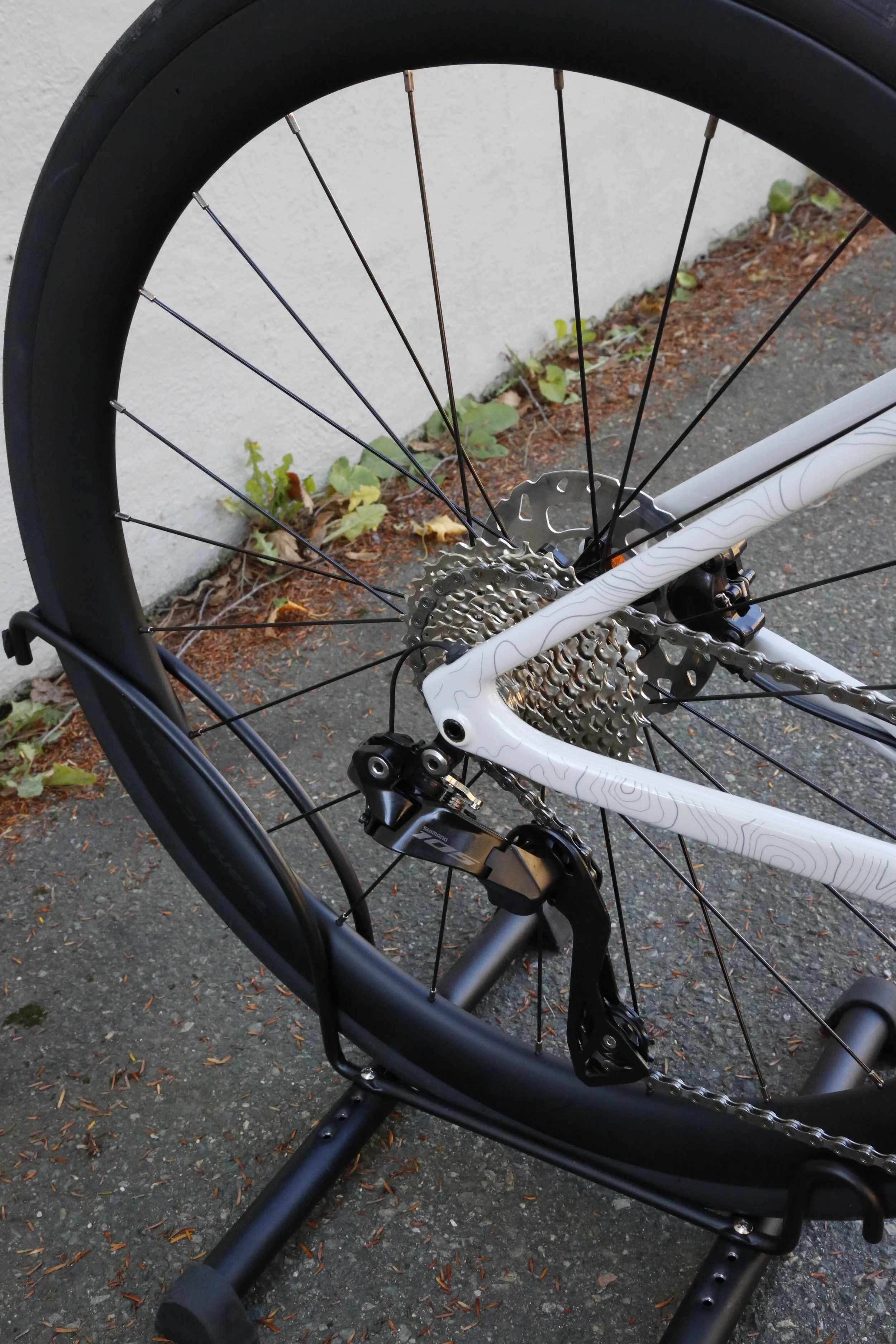

Rear Derailleur - Shimano 105 Di2 RD-R7150
Front Derailleur - Shimano 105 Di2 FD-R7150
Bottom Bracket - BSA 24mm
Saddle - Branta R302
-
XS S M L XL XXL
Seat Tube Length 420mm 440mm 470mm 490mm 510mm 530mm
Top Tube Length 500mm 515mm 531mm 550mm 570mm 590mm
Head Tube Length 130mm 135mm 145mm 160mm 175mm 200mm
Seat Tube Angle 75° 75° 75° 74° 74° 74°
Head Tube Angle 70° 72° 73° 73° 73° 74°
Chainstay 410mm 410mm 410mm 410mm 410mm 410mm
Wheelbase 973mm 976mm 982mm 993mm 1006mm 1016mm
Bottom Bracket Drop 72mm 72mm 70mm 70mm 68mm 68mm
Stack 526mm 535mm 546mm 561mm 574mm 602mm
Reach 360mm 370mm 380mm 390mm 400mm 412mm
Center 574mm 577mm 581mm 593mm 606mm 616mm
Stand Over 737mm 752mm 772mm 789mm 807mm 830mm
